Yaoda Motor Highlights Standardized Quality Control Across Industrial Motor Production
ANHUI, CHINA — Anhui Yaoda Motor Co., Ltd. is highlighting its standardized manufacturing and quality-control practices across its industrial motor production operations. From incoming material inspection to precision machining, stator winding, assembly, finished-motor testing and export preparation, the company applies process controls to support consistent product quality and reliable industrial equipment supply.
The production management approach supports Yaoda's major product families, including YE3 IE3 induction motors, YE4 and YE5 high-efficiency motors, YVF2 and YVF3 variable-frequency motors, explosion-protected motors and electromagnetic brake motors.
For international OEM customers and industrial equipment manufacturers, consistency between the approved motor specification and the delivered product is an important part of supplier reliability. Yaoda's manufacturing procedures are organized around this requirement.
Material Inspection Establishes the First Quality Checkpoint
At the beginning of production, Yaoda inspects critical motor materials, including copper winding wire, electrical steel laminations and bearings.
The company's documented material-control procedures include composition and mechanical-property inspection using appropriate testing equipment, including spectral analysis and tensile testing where applicable.
These materials directly influence the electrical and mechanical performance of finished motors.
For example, Yaoda's YE3 H80–355 IE3 induction motor series covers approximately 0.55–315 kW across multiple pole configurations. Consistency in winding conductors and electrical steel is important for meeting the specified electrical characteristics across different frame sizes.
For the YE4 IE4 and YE5 IE5 induction motor series, material quality and manufacturing accuracy are particularly relevant to controlling electrical losses and achieving the required efficiency performance.
By conducting material checks before production, Yaoda aims to identify nonconforming materials before they enter subsequent manufacturing processes.
Precision Machining and Controlled Assembly Support Motor Consistency
Yaoda's manufacturing operations include machining and dimensional inspection of critical stator, rotor and mechanical components.
Automated production equipment and process inspection are used to control relevant manufacturing dimensions and machining parameters.
During assembly, the production sequence includes stator installation, rotor and bearing assembly, end-cover installation, terminal-box assembly and related mechanical checks.
These procedures are important across the company's motor range, but the mechanical requirements vary according to frame size and application.
For example, the YE3 H355–450 low-voltage high-power motor series covers approximately 160–1000 kW. Motors in this category require careful consideration of shaft dimensions, bearing arrangements, component alignment and mechanical compatibility with the driven equipment.
Yaoda's standardized machining and assembly procedures provide a consistent production framework for both general-purpose industrial motors and larger-frame configurations.
Winding and Insulation Processes Support Electrical Reliability
Stator winding is another important stage of Yaoda's industrial motor manufacturing process.
The company's production capabilities include winding equipment, insulation processing and electrical inspection. Vacuum pressure impregnation (VPI) is also part of its published manufacturing capability.
For the YE3, YE4 and YE5 induction motor families, winding consistency, insulation integrity and thermal performance are important aspects of the finished motor specification.
The published YVF2 performance table lists H200–355 models rated 18.5–315 kW; other YVF2 frame sizes and ratings require model-specific confirmation. Yaoda's YVF3 H355–450 motors are published at approximately 132–900 kW. Both series are intended for inverter-driven industrial applications.
These motor series introduce operating requirements that differ from conventional fixed-speed induction motors. The specified insulation system, cooling arrangement and electrical characteristics must be appropriate for the intended application.
The company's manufacturing controls therefore support both common production requirements and the specific technical needs of individual motor series.
Different Motor Series Require Different Verification Priorities
Yaoda's product range extends beyond standard three-phase induction motors. Each product category introduces additional design, assembly or verification considerations.
| Motor Series | Product-Specific Quality Focus |
|---|---|
| YE3 / YE4 / YE5 | Winding insulation, electrical performance, temperature rise and specified efficiency |
| YVF2 / YVF3 | Insulation, cooling configuration and electrical suitability for the specified variable-frequency application |
| YBX3 / YFBX3 / YFBX4 | Explosion-protection construction, enclosure integrity and conformity with applicable protection requirements |
| YEJ2 / YEJVF | Electromagnetic brake assembly, electrical connections and braking functionality |
| YD2 | Winding connections and performance at the specified pole-changing speed configurations |
For Yaoda's YBX3 explosion-proof motors and YFBX3/YFBX4 dust or combined gas-and-dust explosion-protected motor series, the required protection construction and applicable certification must be confirmed for the specific model and intended hazardous-area application.
For electromagnetic brake motors, correct integration of the braking mechanism is essential to the required operating function.
These differences illustrate why product quality cannot be evaluated through one general performance figure alone. The inspection requirements must reflect the motor's intended function and technical specification.
Finished-Motor Testing Forms a Key Part of Production Verification

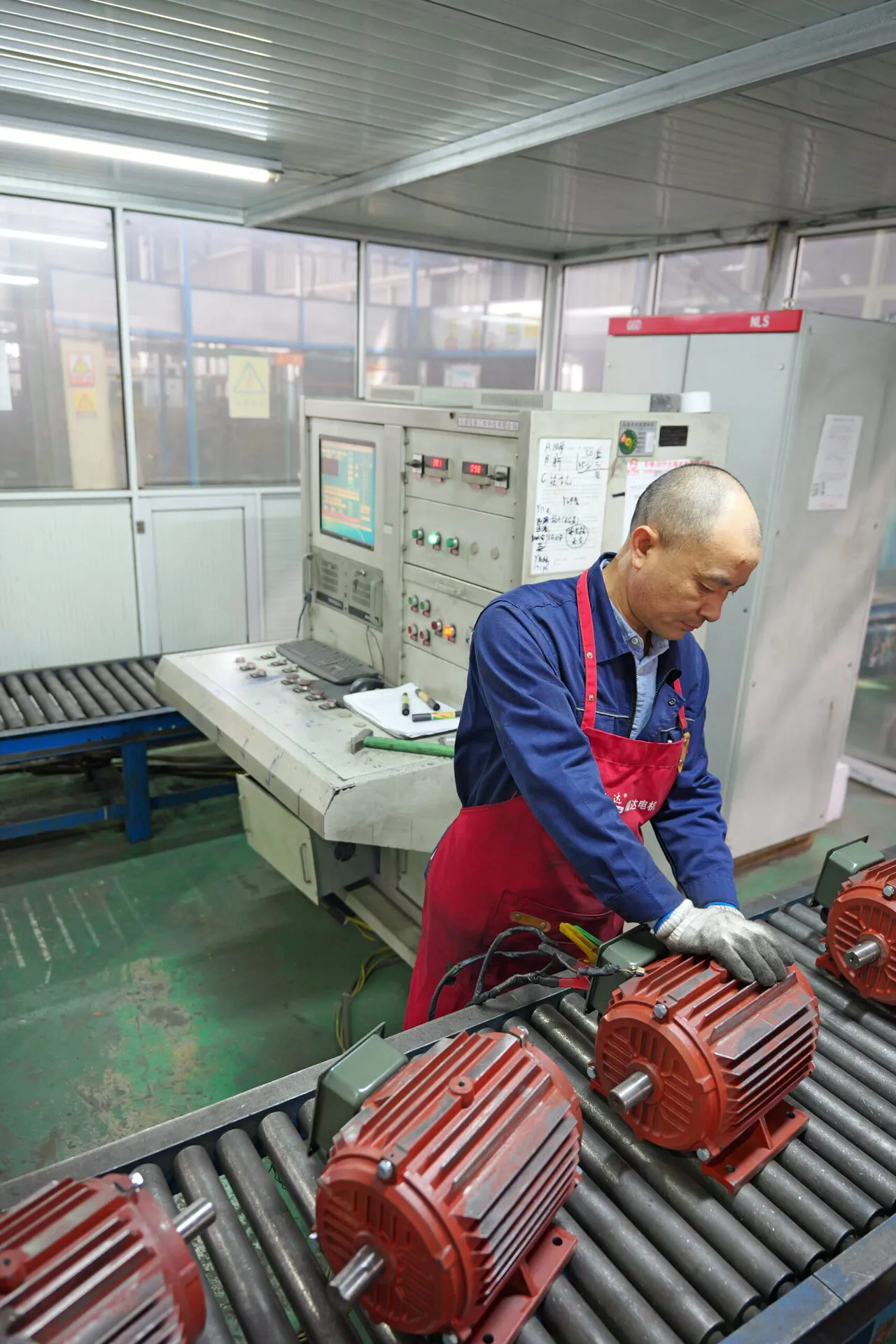

Following assembly, finished motors undergo electrical and mechanical inspection according to the applicable product and production requirements.
Yaoda's documented testing capabilities and procedures include:
- Insulation resistance testing
- Dielectric withstand testing
- No-load electrical performance measurements
- Load performance verification
- Vibration and noise inspection
- Temperature-rise testing
- Other electrical and mechanical performance checks
The applicable routine tests, performance tests and additional inspection requirements are determined by the motor series, technical specification and agreed testing scope.
For IE3, IE4 and IE5 motor projects, verification of the specified efficiency performance is particularly important. For customized OEM motors, additional dimensional or application-related inspection requirements can be agreed before production.
By connecting production inspection with finished-product verification, Yaoda aims to maintain consistency between the confirmed motor specifications and the products prepared for delivery.
Customers can learn more about the company's machining, winding, assembly and testing facilities through the Yaoda Motor manufacturing workshops.
Quality Management Continues Through Export Preparation
Yaoda's production quality-management process extends to final inspection, product identification, protective packaging and shipment preparation.
According to the company's documented procedures, export packaging includes moisture and corrosion protection, cushioning materials and appropriate external packaging to help protect motors during transportation.
The packaging arrangement depends on the motor's size, weight and shipment requirements.
Relevant product identification, operating instructions, inspection documents and other agreed delivery records are prepared according to the order specification.
For international distributors and OEM equipment manufacturers, these arrangements help support receiving inspection, installation preparation and repeat-order identification.
Supporting International OEM and Industrial Equipment Projects

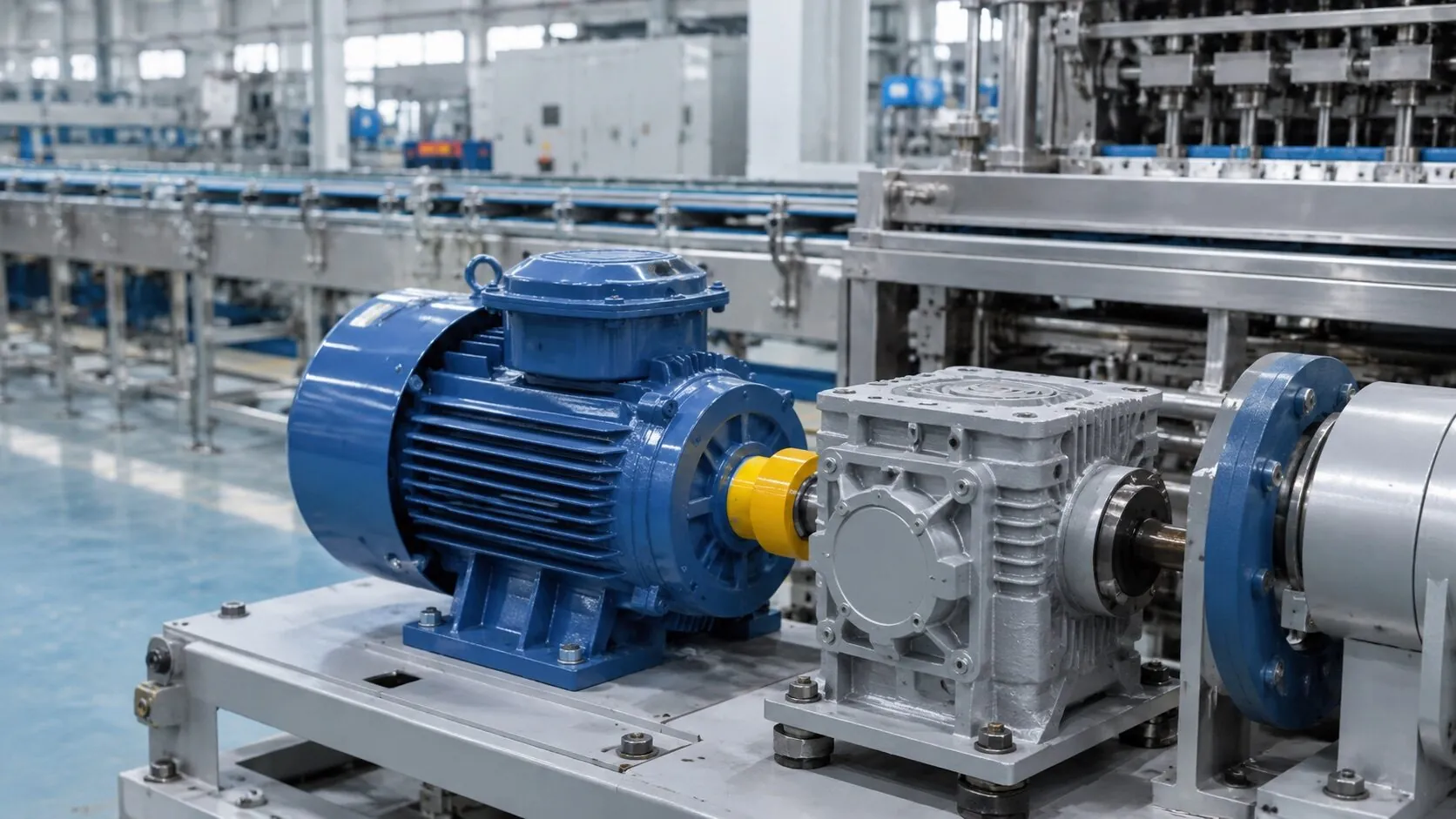

Yaoda Motor supplies industrial motor solutions for machinery manufacturing, pumps, fans, compressors, conveyors, mining equipment and other industrial applications.
Its standardized manufacturing procedures provide a common quality-control foundation across high-efficiency induction motors, variable-frequency motors, high-power motors and specialized industrial motor configurations.
The company continues to focus on manufacturing consistency, product-specific inspection requirements and technical coordination for industrial and export orders.
For new projects, Yaoda recommends confirming the required motor power, voltage, frequency, speed, mounting arrangement, efficiency class, operating environment and inspection documentation before production.
These details help establish a clear manufacturing and delivery specification for standard products, replacement motors and customized OEM applications.
To discuss industrial motor specifications, inspection requirements or an upcoming order, customers can contact Yaoda Motor's project team.
