| Item | Specification |
|---|---|
| Model No. | YE3 |
| Frame Size | 80–180 mm |
| Voltage | 380 V, or customized |
| Protection Degree | IP55 |

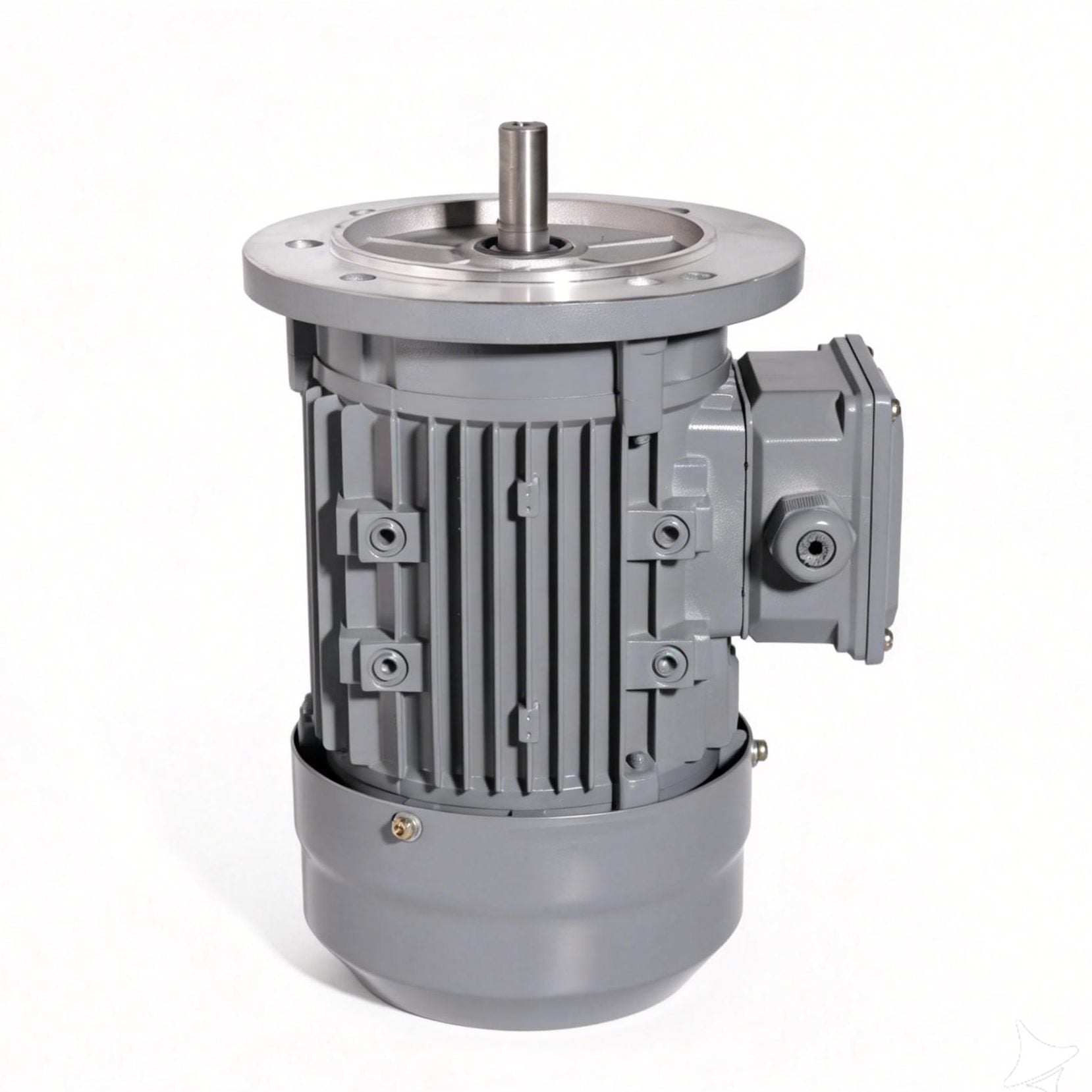

| Mounting Type | Foot, Flange, Double Shaft Ends |
| Certification | ISO9001, CCC, CE |
| Insulation Class | Class F |
| Output Power | 0.18–22 kW |
YE3 Series (H80–180) Aluminum Housing Three-Phase Asynchronous Motor
-
The YE3 aluminum-housing series three-phase asynchronous motor meets the Grade 3 efficiency requirements of GB 18613-2020, Minimum Allowable Values of Energy Efficiency and Energy Efficiency Grades for Small and Medium Three-Phase Asynchronous Motors, and corresponds to the IE3 efficiency level of IEC 60034-30-1.

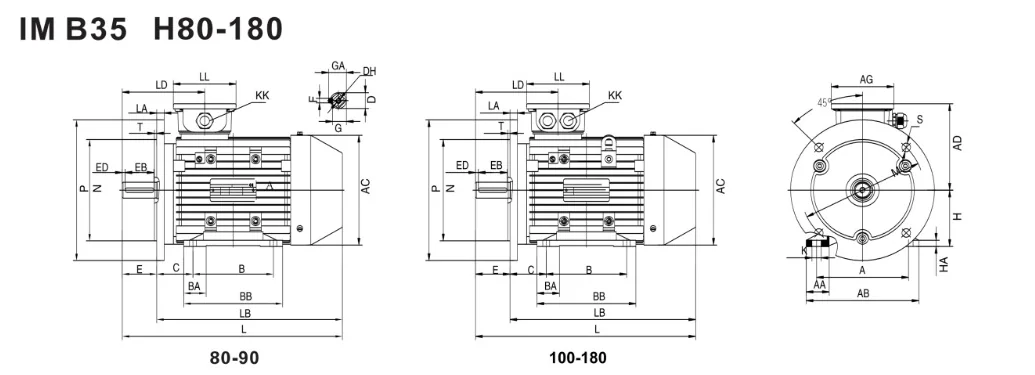

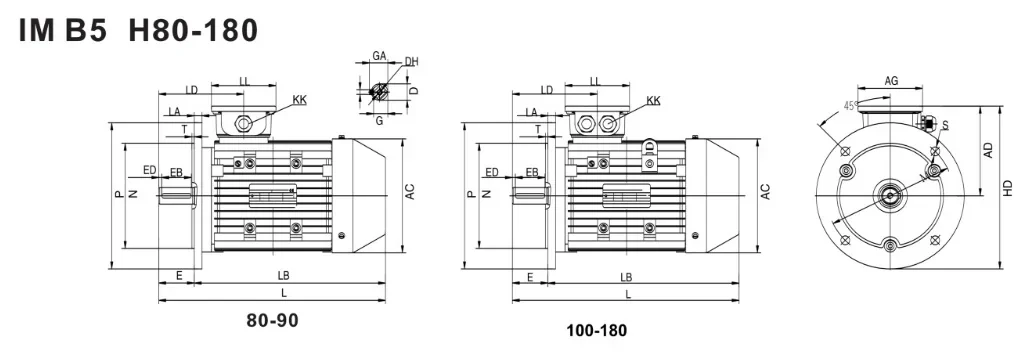

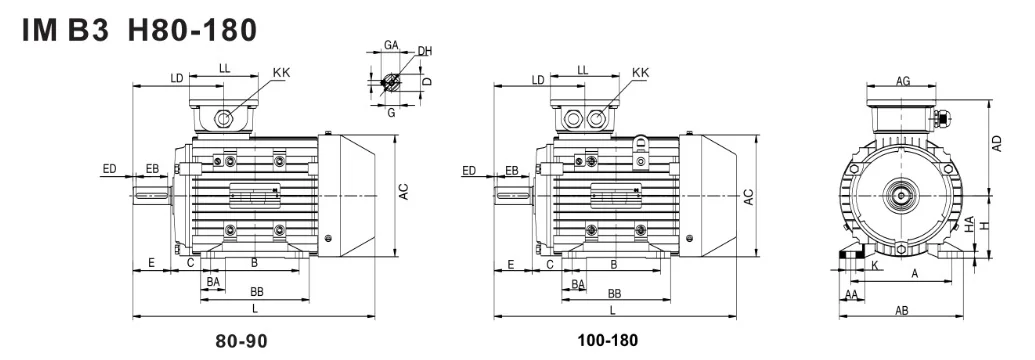

Its improved-efficiency design meets the national requirements for energy saving and consumption reduction in the manufacturing industry, and the mounting dimensions of the YE3 aluminum-housing motors comply with IEC 60034.
The series offers energy saving, low vibration, low noise, good heat dissipation, smooth running, stable performance, reliable quality, a modern appearance and convenient maintenance.
These motors are widely used as drives for gear reducers, air compressors, water pumps, oil pumps, fans, production lines, packaging machines, food machinery, machine tools, drilling machines and other general machinery industries.
Technical Data of YE3 Series (H80–180) Aluminum Housing Three-Phase Asynchronous Motors
↔ Swipe or drag horizontally to view all specifications.Motor Type Rated Output Rated Speed (r/min) Efficiency (%) IE3 Efficiency at 75% Load (%) Efficiency at 50% Load (%) Power Factor (cosφ) Rated Current (A) Rated Torque (N·m) Locked-Rotor Torque / Rated Torque (Ts/Tn) Maximum Torque / Rated Torque (Tmax/Tn) Locked-Rotor Current / Rated Current (Is/In) Weight (kg) kW HP 380V 400V 415V YE3-801-2 0.75 1 2880 80.7 80.7 79.1 0.82 1.72 1.64 1.58 2.49 2.3 2.3 7 8.8 YE3-802-2 1.1 1.5 2880 82.7 82.7 81 0.83 2.43 2.31 2.23 3.65 2.2 2.3 7.3 9 YE3-90S-2 1.5 2 2895 84.2 84.2 82.5 0.84 3.22 3.06 2.95 4.95 2.2 2.3 7.6 13.5 YE3-90L-2 2.2 3 2895 85.9 85.9 84.2 0.85 4.58 4.35 4.19 7.26 2.2 2.3 7.6 17 YE3-100L-2 3 4 2895 87.1 87.1 85.4 0.87 6.02 5.71 5.51 9.9 2.2 2.3 7.8 23.2 YE3-112M-2 4 5.5 2905 88.1 88.1 86.3 0.88 7.84 7.45 7.18 13.1 2.2 2.3 8.3 40 YE3-132S1-2 5.5 7.5 2930 89.2 89.2 87.4 0.88 10.6 10.1 9.75 17.9 2 2.3 8.3 42 YE3-132S2-2 7.5 10 2930 90.1 90.1 88.3 0.88 14.4 13.7 13.2 24.4 2 2.3 7.9 48 YE3-160M1-2 11 15 2945 91.2 91.2 89.4 0.89 20.6 19.6 18.9 35.7 2 2.3 8.1 83 YE3-160M2-2 15 20 2945 91.9 91.9 90.1 0.89 27.9 26.5 25.5 48.6 2 2.3 8.1 94 YE3-160L-2 18.5 25 2940 92.4 92.4 90.6 0.89 34.2 32.5 31.3 60.1 2 2.3 8.2 106.5 YE3-180M-2 22 30 2955 92.7 92.7 90.8 0.89 40.5 38.5 37.1 71.1 2 2.3 8.2 140 YE3-801-4 0.55 0.75 1400 80.8 80.8 79.2 0.75 1.38 1.31 1.26 3.75 2.4 2.3 5.2 9.1 YE3-802-4 0.75 1 1420 82.5 82.5 80.9 0.75 1.84 1.75 1.69 5.04 2.3 2.3 6.6 11.1 YE3-90S-4 1.1 1.5 1445 84.1 84.1 82.4 0.76 2.61 2.48 2.39 7.27 2.3 2.3 6.8 15 YE3-90L-4 1.5 2 1445 85.3 85.3 83.6 0.77 3.47 3.3 3.18 9.91 2.3 2.3 7 19 YE3-100L1-4 2.2 3 1450 86.7 86.7 85 0.81 4.76 4.52 4.36 14.6 2.3 2.3 7.6 25.4 YE3-100L2-4 3 4 1450 87.7 87.7 85.9 0.82 6.34 6.02 5.8 20 2.3 2.3 7.6 30.5 YE3-112M-4 4 5.5 1450 88.6 88.6 86.8 0.82 8.37 7.95 7.66 26.5 2.2 2.3 7.8 37 YE3-132S-4 5.5 7.5 1460 89.6 89.6 87.8 0.83 11.2 10.7 10.3 36 2 2.3 7.9 48.5 YE3-132M-4 7.5 10 1460 90.4 90.4 88.6 0.84 15 14.3 13.7 49.1 2 2.3 7.5 60 YE3-160M-4 11 15 1465 91.4 91.4 89.6 0.85 21.5 20.4 19.7 71.7 2.2 2.3 7.7 92.5 YE3-160L-4 15 20 1465 92.1 92.1 90.3 0.86 28.8 27.3 26.3 97.8 2.2 2.3 7.8 107 YE3-180M-4 18.5 25 1470 92.6 92.6 90.7 0.86 35.3 33.5 32.3 120.2 2 2.3 7.8 138 YE3-180L-4 22 30 1470 93 93 91.1 0.86 41.8 39.7 38.3 142.9 2 2.3 7.8 153 YE3-801-6 0.37 0.5 890 73.5 73.5 72 0.7 1.09 1.04 1 3.97 1.9 2 4.7 12.2 YE3-802-6 0.55 0.75 890 77.2 77.2 75.7 0.72 1.5 1.43 1.38 5.9 1.9 2.1 4.7 13.2 YE3-90S-6 0.75 1 935 78.9 78.9 77.3 0.71 2.03 1.93 1.86 7.66 2 2.1 6 14 YE3-90L-6 1.1 1.5 945 81 81 79.4 0.73 2.83 2.69 2.59 11.1 2 2.1 6 18 YE3-100L-6 1.5 2 949 82.5 82.5 80.9 0.73 3.78 3.59 3.47 15.1 2 2.1 6.5 29.5 YE3-112M-6 2.2 3 955 84.3 84.3 82.6 0.74 5.36 5.09 4.91 22 2 2.1 6.6 32 YE3-132S-6 3 4 968 85.6 85.6 83.9 0.74 7.2 6.84 6.59 29.6 2 2.1 6.8 43 YE3-132M1-6 4 5.5 968 86.8 86.8 85.1 0.74 9.46 8.99 8.66 39.5 2 2.1 6.8 49 YE3-132M2-6 5.5 7.5 968 88 88 86.2 0.75 12.7 12 11.6 54.3 2 2.1 7 59 YE3-160M-6 7.5 10 970 89.1 89.1 87.3 0.79 16.2 15.4 14.8 73.8 2 2.1 7 82 YE3-160L-6 11 15 970 90.3 90.3 88.5 0.8 23.1 22 21.2 108.3 2 2.1 7.2 118.5 YE3-180L-6 15 20 978 91.2 91.2 89.4 0.81 30.9 29.3 28.2 146.5 2 2.1 7.3 135 YE3-801-8 0.18 0.25 650 58.7 58.7 57.5 0.61 0.76 0.73 0.7 2.64 1.8 1.9 3.3 11.7 YE3-802-8 0.25 0.37 650 64.1 64.1 62.8 0.61 0.97 0.92 0.89 3.67 1.8 1.9 3.3 12.5 YE3-90S-8 0.37 0.5 675 69.3 69.3 67.9 0.61 1.33 1.26 1.22 5.23 1.8 1.9 4 17.3 YE3-90L-8 0.55 0.75 675 73 73 71.5 0.61 1.88 1.78 1.72 7.78 1.8 2 4 21.2 YE3-100L1-8 0.75 1 685 75 75 73.5 0.67 2.27 2.15 2.08 10.5 1.8 2 4 29 YE3-100L2-8 1.1 1.5 685 77.7 77.7 76.1 0.69 3.12 2.96 2.85 15.3 1.8 2 5 30.5 YE3-112M-8 1.5 2 695 79.7 79.7 78.1 0.7 4.08 3.88 3.74 20.6 1.8 2 5 38.5 YE3-132S-8 2.2 3 710 81.9 81.9 80.3 0.71 5.75 5.46 5.26 29.6 1.8 2 6 49.5 YE3-132M-8 3 4 710 83.5 83.5 81.8 0.73 7.48 7.1 6.85 40.4 1.8 2 6 59 YE3-160M1-8 4 5.5 725 84.8 84.8 83.1 0.73 9.82 9.33 8.99 52.7 1.9 2 6 92 YE3-160M2-8 5.5 7.5 725 86.2 86.2 84.5 0.74 13.1 12.4 12 72.4 2 2 6 103 YE3-160L-8 7.5 10 725 87.3 87.3 85.6 0.75 17.4 16.5 15.9 98.8 2 2 6 117 YE3-180L-8 11 15 735 88.6 88.6 86.8 0.75 25.2 23.9 23 142.9 2 2 6 123 Item Specification Model No. YE3 Function Driving, Control, Electric Motor Poles 2, 4, 6, 8 Certification ISO9001, CCC, CE Frame Size 80–180 mm Efficiency Class IE3 Duty S1 Voltage 380 V, or Customized Terminal Box Position Top, Right Side, Left Side Origin Chuzhou, Anhui, China Production Capacity 500 units / day Number of Stator Phases Three-Phase Casing Protection Protection Type Starting Mode Direct On-Line Starting Brand Wanda Motor Output Power 0.18–22 kW Insulation Class Class F Protection Degree IP55 Frequency 50 Hz / 60 Hz Frame Material Aluminum Mounting Type Foot, Flange, Double Shaft Ends Transport Package Carton / Wooden Case / Pallet Ambient Temperature -15 to +40 °C, altitude up to 1000 m HS Code 8501520000
-
